Product Details:
|
| Features: | High Accuracy And Long Life Service Time | Product Brand: | WORLIDA |
|---|---|---|---|
| Product Name: | CVD Diamond Wafer | Type: | CVD Diamond |
| Material: | CVDH/CVDN/CVDJ | Color: | Black/Semi Transparency |
| Highlight: | Worldia CVD Insert,CVD Insert For Machining Cutters,High Hardness CVD Diamond Wafer |
||

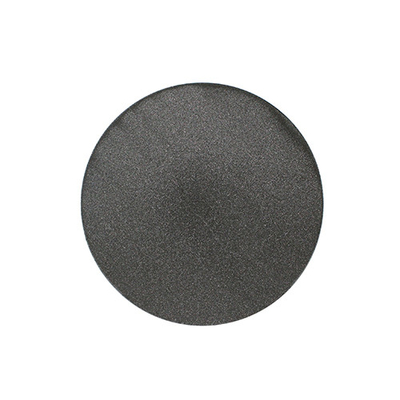

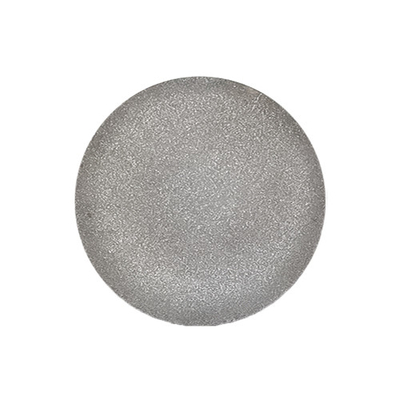

High hardness CVD diamond wafer CVD insert for machining cutters
As a core business of Worlida subsidiary, Sunpower supplies laser cutting services and
the raw material of cutting grade Diamonds, The high thermal conductivity of cutting grade diamonds
make it an ideal tool material for those applications where higher temperature operating conditions are
seen, in particular, dry machining of metal matrix composites and high volume fraction glass fibre(or carbon)
reinforced materials.
MATERIAL INTRODUCTION
Material: CVDD
Features: CVDD is a pure carbon material without binder with extreme abrasion resistance
and good thermal suitability.Due to its perfect cutting edge suitable for applications where
mirror finishes are required.
Application: Application areas include the machining of abrasive workpieces such as MMC,
high silicon aluminium alloys as well as for the machining of carbide, hard rubber, graphite and
other applications.
PRODUCTION INFORMATION AND CLASSIFICATION
| Item | Dimension(Max) | Thickness | Blank | Tip | Dresser | μm | Finish |
| Colour | mm | mm | μm | μm | |||
| CVDH | Black | 25.4*25.4 | 0.3-1.3 | ±20/±50 | ±20/±50 | ±20/±50 | Single Lap Double Lap Single Polish Double Polish |
| CDN | Black | 25.4*25.4 | 0.25-1.0 | ±20/±50 | ±20/±50 | ±20/±50 | |
| CVDJ | Semi Transparency | 70 | 0.5-1.3 | ±20/±50 | ±20/±50 | ±20/±50 |
| Dresser Application | Cutting Application | Thermal Application | Thermal Application | |||
| CVDH | ★★★★ | ★★★★ | ★★★ | |||
| CDN | ★★★ | ★★★★★ | ★★★★ | |||
| CVDJ | ★★★★★ | ★★★★ | ★★★★★ | |||
Features and Benefits:
According to different use, Worldia can meet the customers' extent needs in abrasion ratio, fracture resistance,
purity, and thermal conductivity, and so on.
1.Long using life for tools.
Worldia CVD diamond wear resistant parts and coating tools can increase all kinds of products using life.
2.Customer-tailor for particular needs.
Worldia supply no-processed CVD diamond blanks, and customers can lap or cut them according to their particular needs.
3.Various applications.
Can be used in machine cutters, diamond dressers, diamond wire drawing die blanks, electronic components heat spreaders and other fields
APPLICATIONS
| According to a different use, Sunpower can meet the customers' extent needs in abrasion ratio, fracture resistance, purity, and thermal conductivity, and so on. Supower CVD diamond wear-resistant parts and coating tools can increase all kinds of products using life. Supower supply no-processed CVD diamond blanks, and customers can lap or cut them according to their particular needs. |
SPECIFICATIONS

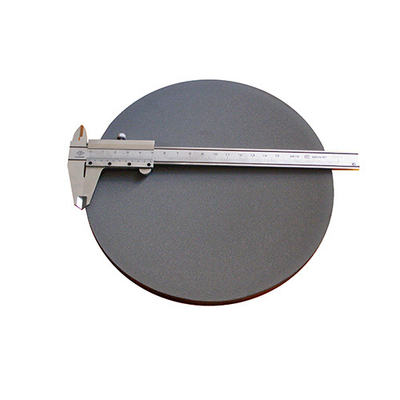

0.3-3 mm thick, the max diameter is 200 mm.
